Created from scattered chips and consolidated in a press, TAFNEX™ Design Sheets feature a customizable forged carbon look. This includes a range of coloring options that provide a unique alternative to the classic black carbon aesthetic. Learn more about the potential designs and specifications below or browse our gallery to get inspired.

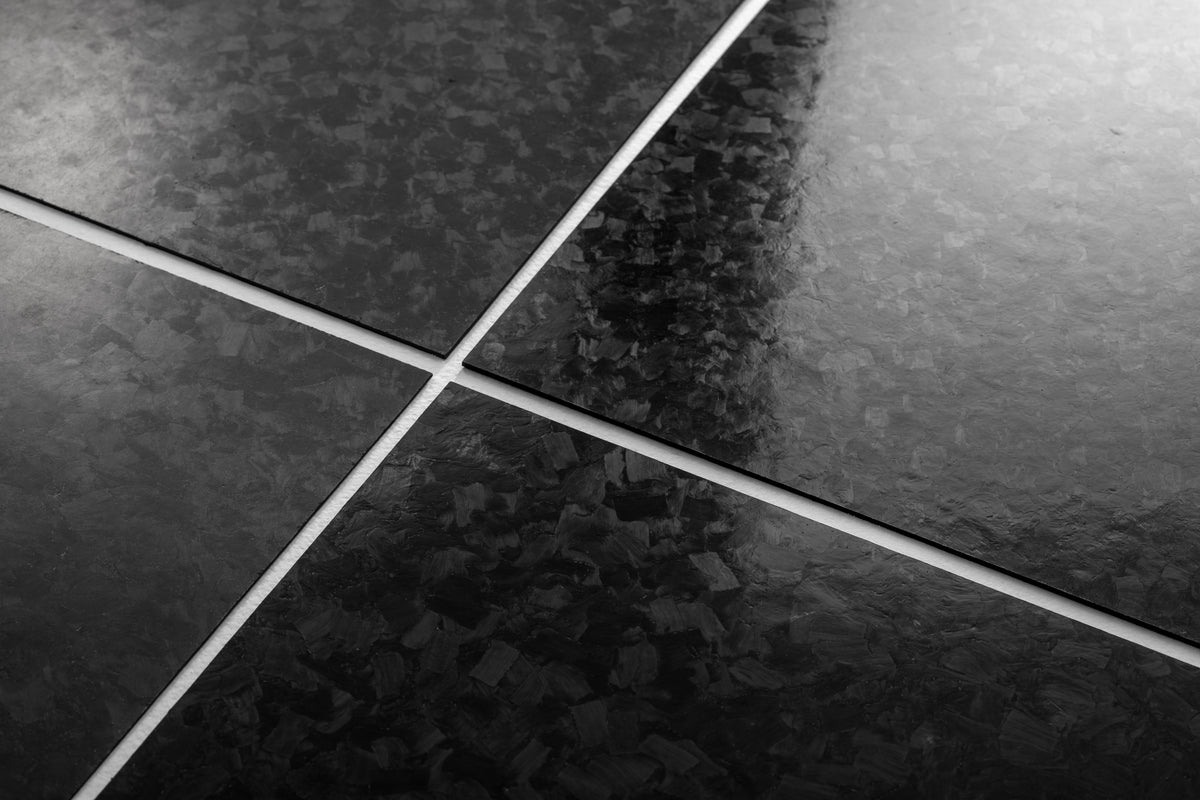

Due to the random scattering, every TAFNEX™ Design Sheet naturally has a distinct look. There are numerous customization options available, including various chip sizes and multiple coloring choices. Additionally, the look can be altered by modifying the temperature and pressure during the manufacturing process. Discover the various options available below.
TAFNEX™ Design Sheets are reinforced with randomly oriented long fibers rather than aligned continuous fibers, resulting in significantly lower mechanical performance compared to other TAFNEX™ Sheets. To mitigate this, UD layers can be added on the non-visible side or in between. Additionally, incorporating just a single UD layer can greatly enhance the handleability of TAFNEX™ Design Sheets during component production.
TAFNEX™ Design Sheets are manufactured to your specifications, with thicknesses starting from approximately 0.5 mm. While most applications are covered with thicknesses up to 1 mm, higher thicknesses are possible as well.
TAFNEX™ Design Sheets are made to your required dimensions, not restricted by standard sizes. Sheets can be produced up to 3 meters in both length and width.

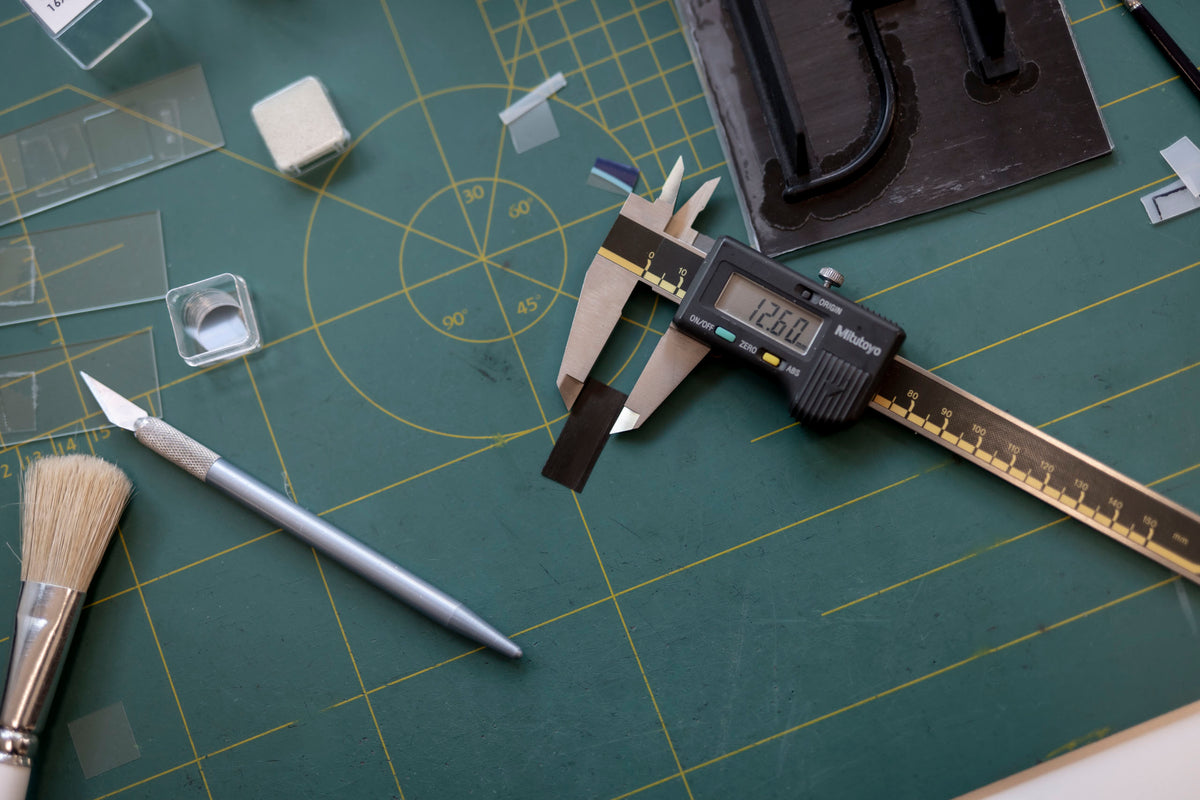

The forged carbon appearance of TAFNEX™ Design Sheets is greatly affected by the chip size. Smaller chips suit smaller components, while larger chips typically look better on larger ones. The chip size is adjustable, but we recommend the following standard sizes:
6x6 mm | 6x12 mm | 12x12 mm | 12x24 mm
24x24 mm | 24x36 mm | 36x36 mm
Thermoforming a TAFNEX™ Design Sheet creates a drone cover that not only adds style but also safeguards the drone's interior components.
Using Compression Molding, a TAFNEX™ Design Sheet with one-sided reinforcements is transformed into a lightweight, function-integrated drone arm.

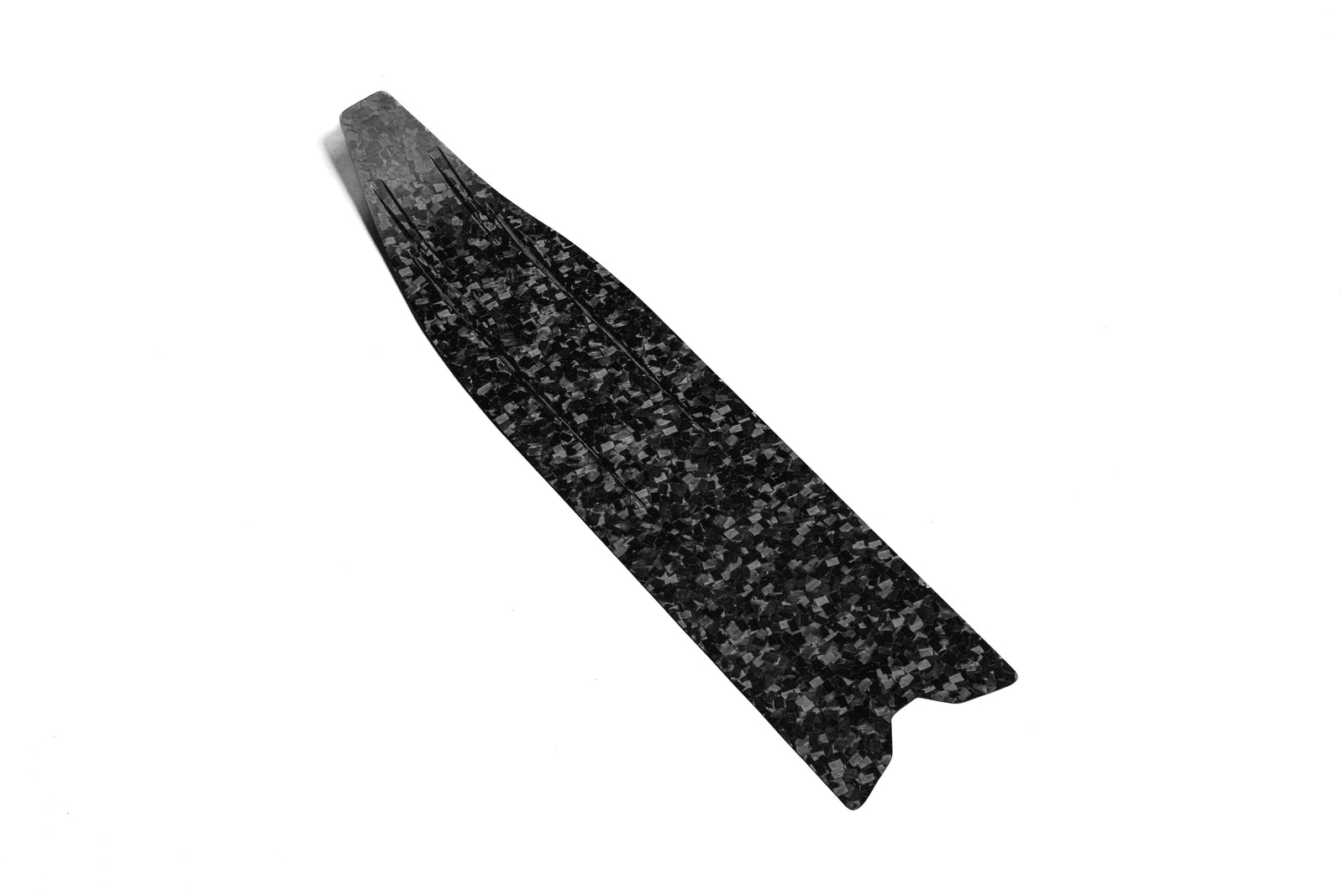

A thin TAFNEX™ Design Sheet is thermoformed into a high-performance diving fin blade. Unidirectional layers are added to achieve the ideal balance between stiffness and flexibility for an exceptional underwater experience.
This injection-molded "VISION Rear lamp" demonstrator from ARRK VS incorporates a TAFNEX™ Design Sheet with semi-transparent chips (Luminous Carbon). This integration allows for back illumination, enhancing its visual appeal with a graceful glow.

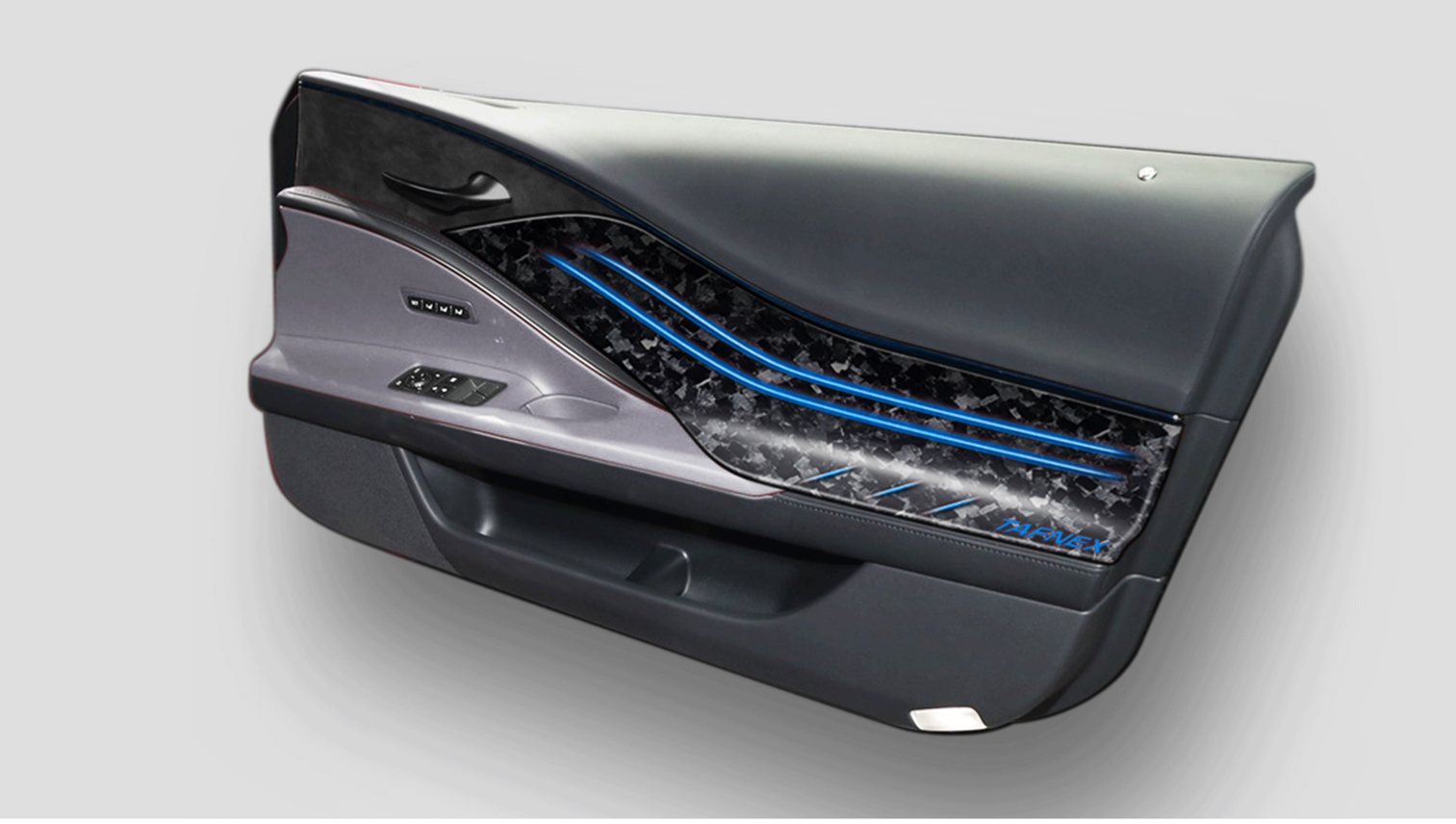

For a premium forged carbon look in car interiors, TAFNEX™ Design Sheets can be applied through Thermoforming or Composite Overmolding.
Utilizing TAFNEX™ Design Sheets, premium forged carbon exterior parts can be manufactured via Thermoforming or Compression Molding.
Using Compression Molding, a TAFNEX™ Design Sheet is transformed into a lightweight bicycle crank lever.
Using TAFNEX™ Design Sheets, suitcase aesthetics and content protection are enhanced, whether as a flat sheet or a thermoformed component.
The marble-like appearance of TAFNEX™ Design Sheets perfectly suits luxurious furniture, whether as a flat sheet or a thermoformed component.
